A-L355 Attendance with Access Control

2.8 Inch TFT LCD

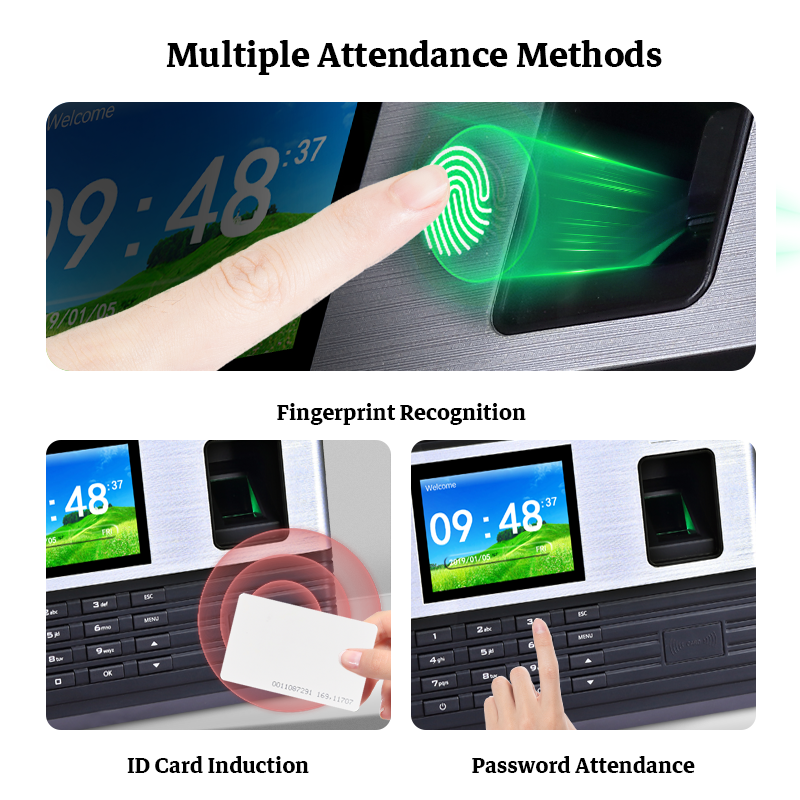

Fingerprint 5,000 (max. 10,000) Password 10,000 Proximity card 10,000 Transaction capacity 100,000 TCP/IP, USB Flash Drive, WIFI (optional), RS485 (optional)

Push data technology

Battery backup (optional) Access control (optional)

Overview
Specification
Download
Download

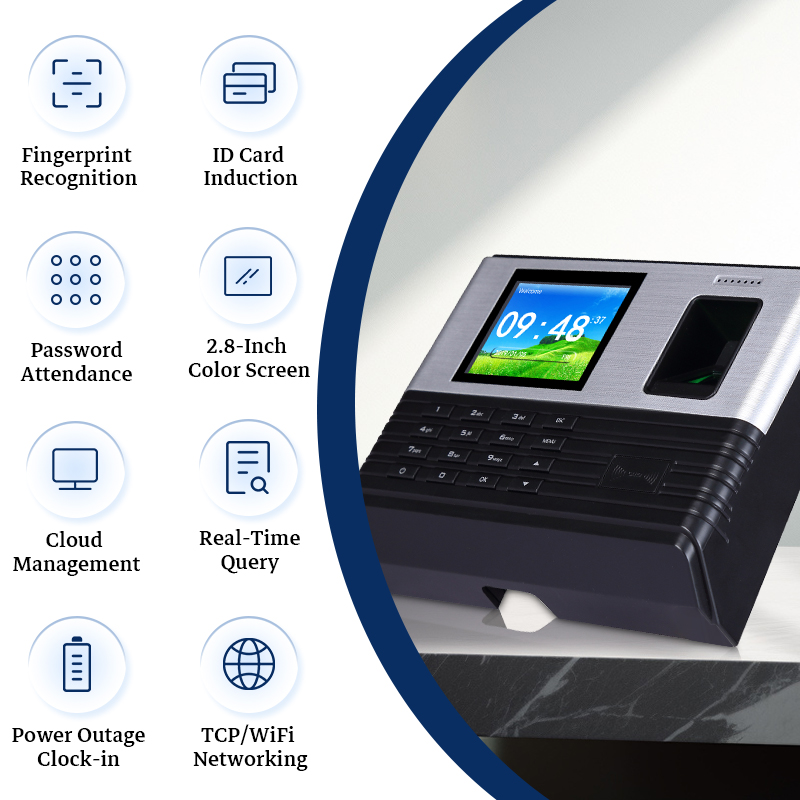

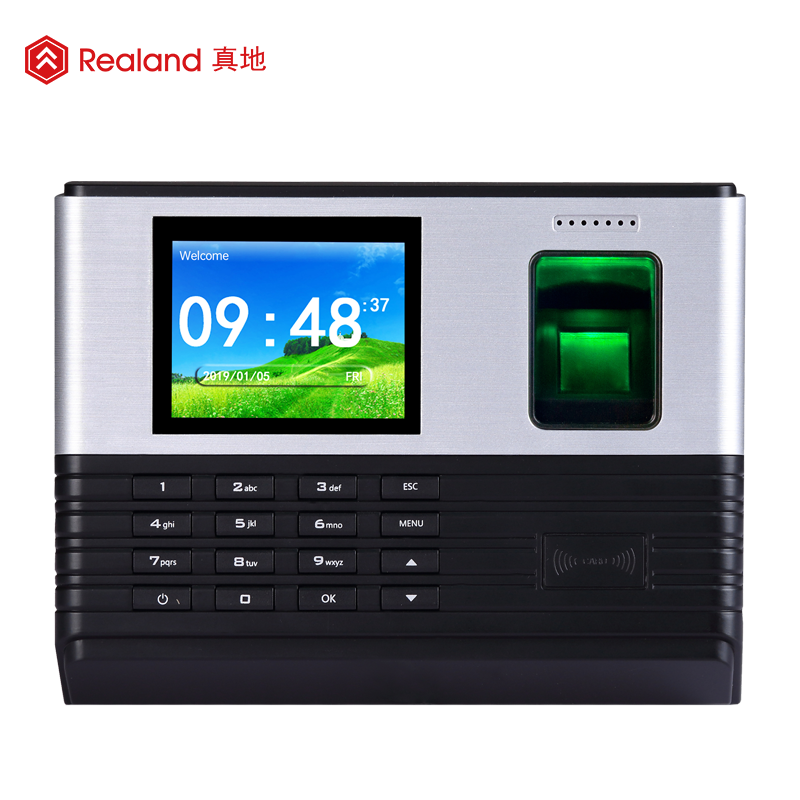

A-L355 is a cost-effective and compact fingerprint machine with large capacity of fingerprint, card, password and transaction.


A-L355 has both C/S and B/S firmeware, and supports web-socket API which makes it suitable for a variety of applications such as school, enterprise, government, etc.


#biometricaccesscontrol hashtag hashtag hashtag hashtag



Model

A-L355

User Capacity

5,000 (max. 10,000)

Fingerprint Capacity

5,000 (max. 10,000)

Password Capacity

5,000 (max. 10,000)

Card Capacity

5,000 (max. 10,000)

Transaction Capacity

100,000

Language

English, Spanish, Arabic, etc.

Display

2.8 Inch TFT Color Screen

Fingerprint Sensor

500DPI (optical sensor)

Proximity Card

Standard for RFID Card(125KHz); optional for MIFARE card

Communication

TCP/IP, USB Flash Drive, optional for WIFI and RS485

Bell

Built-in Timing Bell (Scheduled-bell)

Push Technology (UDP)

Device pushes real-time attendance records to the RAMS software automatically, including the off-line records when connect to the software

Support

Simple access control & external belling

Optional

Backup battery (about 3 hours)

Power Supply

DC 6V/1A; DC 12V/1.5A(with access control function)

Operation Environment

Operating Temp: 0 ℃ ~ 45

Humidity: 20% ~ 80%

Dimension

172(L)*132(W)*41(H)mm
